Spacecraft across multiple orbits, deep space exploration missions, and space stations.
· Ultrathin, lightweight, high efficiency, modular design
· Compact flat design for minimal stowage volume
· Suitable for automated batch production with high consistency
· Space qualified for multiple mission profiles and proven in orbit

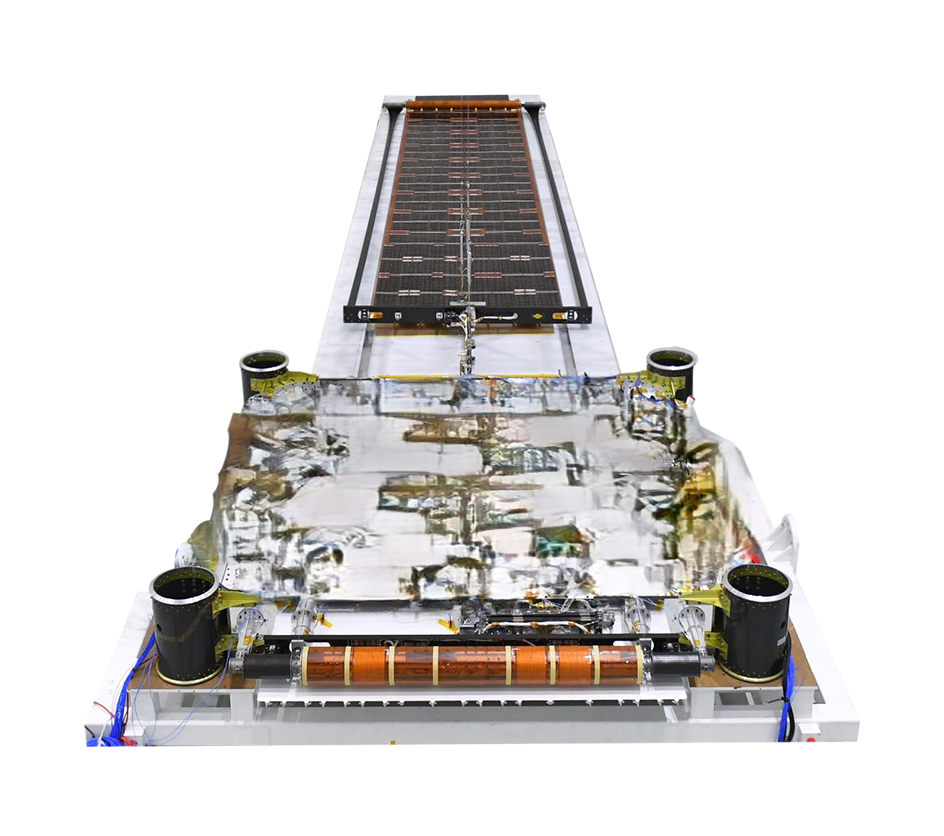

· UNIWATT may employ an FPC composite panel combined with a roll-out deployment mechanism to deliver fully flexible solar wings, achieving a stowed volume of 0.04 m³.

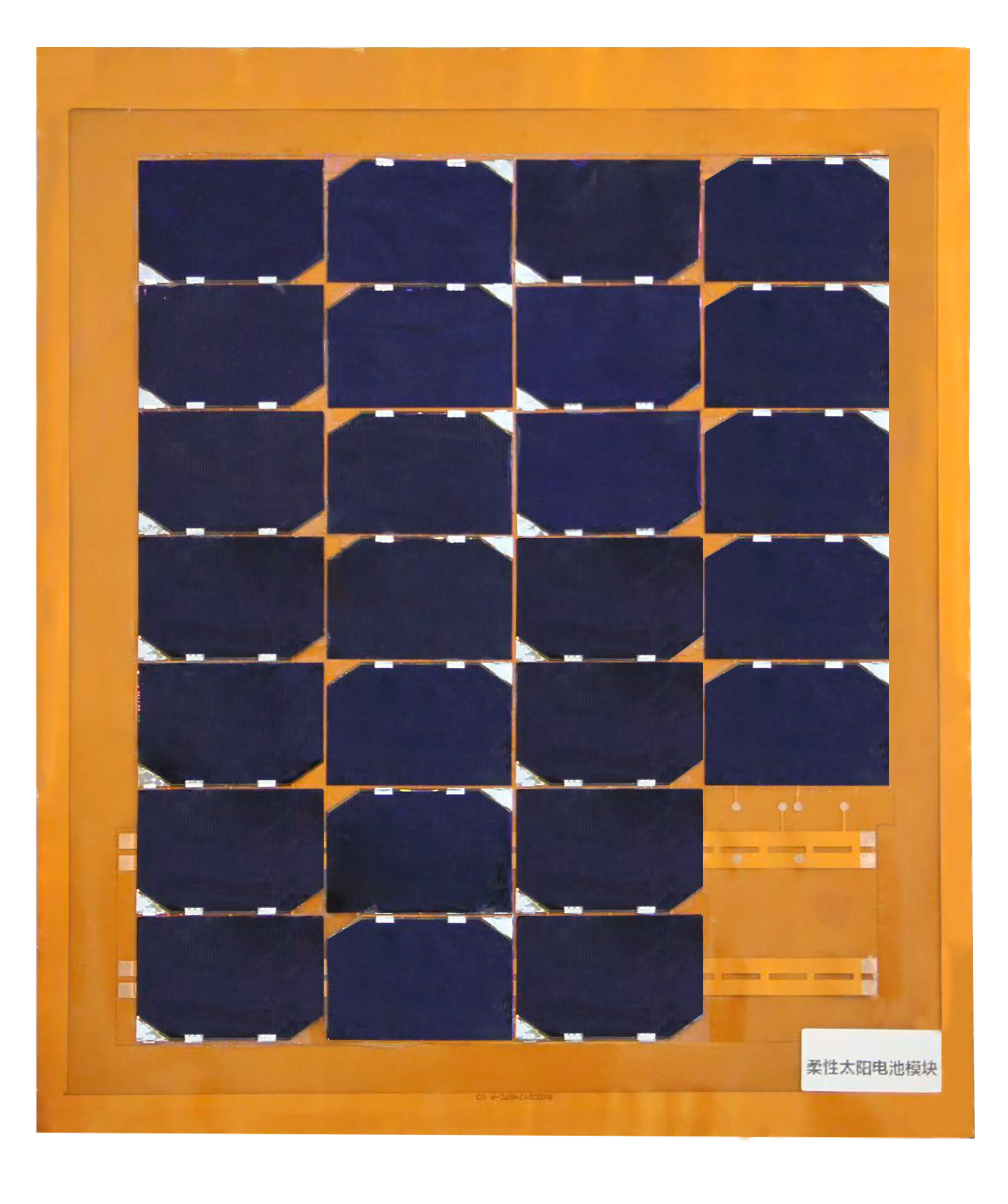

Our flexible triple-junction GaAs solar array exceeds 32% conversion efficiency at the AM0 spectrum. Compared with conventional rigid foldable designs, it reduces weight by ~50% and stowed volume by ~60% (with roll-out structures), enabling lighter satellite launches and large-scale constellation deployments.
Technical Specifications
Parameter | Unit | Value |
Areal density | kg/m² | 0.83 |
Specific power (W/kg) | W/kg | 290 |
Specific power (W/m²) | W/m² | 250 |
