Spacecraft for multi-orbit and deep-space missions
· Mature technology with a short production cycle and high reliability
· Wide operating temperature range (-175°C to +110°C)
· High adaptability across various space environments
· Customizable design for different satellite platforms and missions

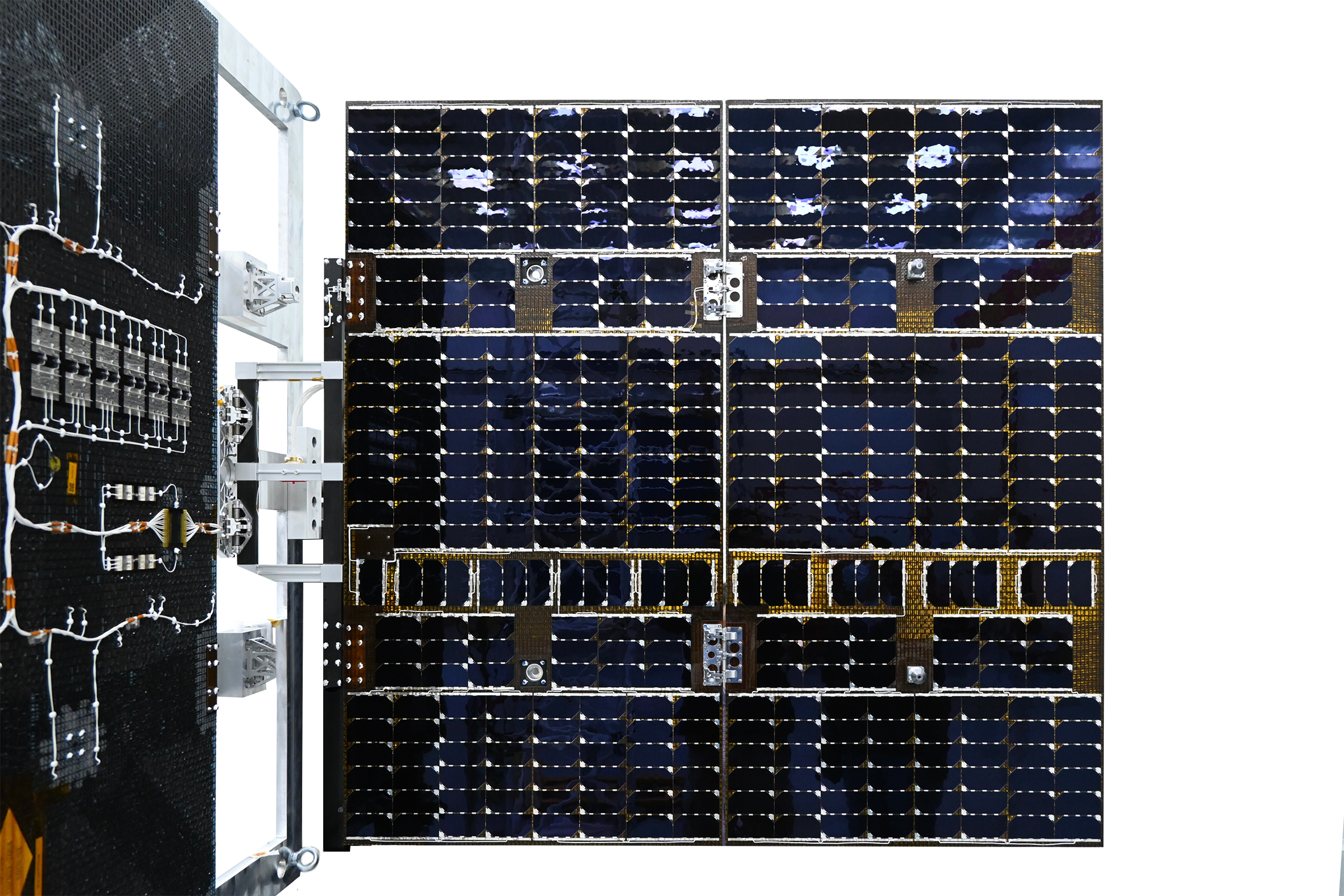

· UNIWATT may adopt a foldable deployment mechanism to deliver complete solar wing products.

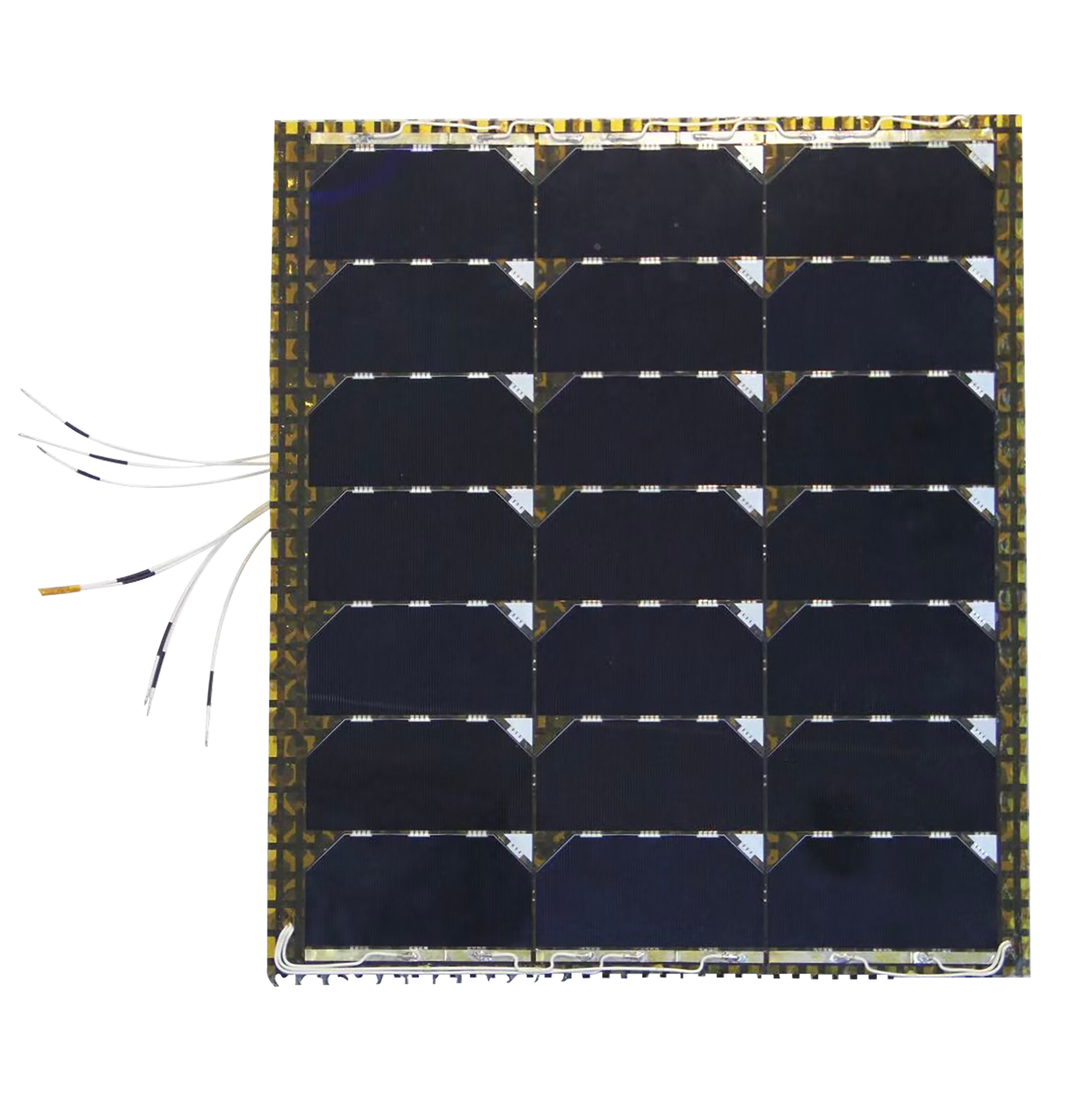

Our rigid solar cell circuit achieves up to 34% conversion efficiency. Cells are connected in a series-parallel configuration on a rigid panel with integrated circuitry to transfer electrical power to the satellite bus. Proven through ground testing and multiple in-orbit satellites, this solution provides reliable power for demanding aerospace applications.
Technical Specifications
Parameter | Unit | Value |
Areal density | kg/m² | 1.63 |
Specific power (W/kg) | W/kg | 150 |
Specific power (W/m²) | W/m² | 250 |
